Product

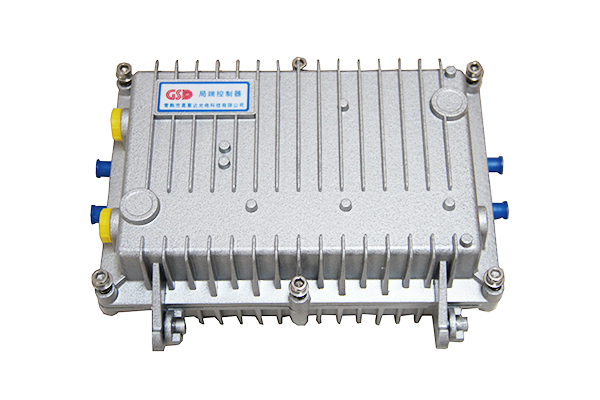

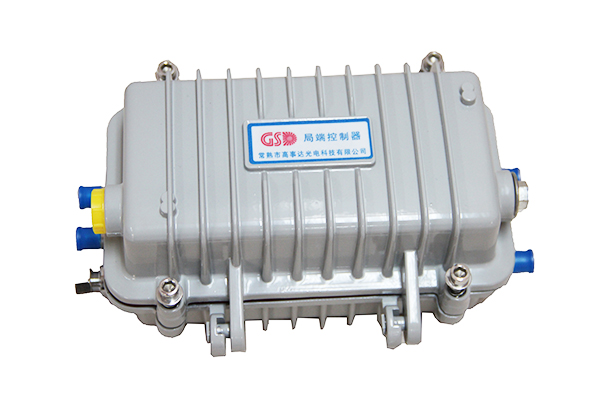

GSDEOC Ethernet over Coax (EoC) Master

Description


GSDEOC is a master device in the EoC system. It provides Cable TV signal passthrough and Ethernet data management to the end-points.

GSDEOC is designed to insert Ethernet data into the existing coax access network to achieve data transmission to the subscriber’s home.

GSDEOC complies with HomePlug AV standards and provides high-speed and reliable data transmission.

GSDEOC meets the IP interactive service requirement of cable operators for Multiple Dwelling Unit (MDU) application with Ethernet data delivered to the building.

GSDEOC is a small and low-cost device, so especially it applies to rapid deployment of Ethernet data application in the existing coax network such as data transmission for video surveillance.


Features:

  ? Comply with HomePlug AV standards

  ? Comply with IEEE 802.1p and 802.1q

  ? Support DHCP service for dynamic IP address assignment

  ? Bidirectional data band: 7.5–65 MHz

  ? Support remote management through SNMP

  ? Support SNMP, Web, CLI configuration management

  ? Max. 500 Mbps sustained data rate

  ? Support IGMP

  ? Support NMS VLAN, DHCP client mode

  ? Support QoS


Block Diagram :


Specifications:



Ordering information
