Product

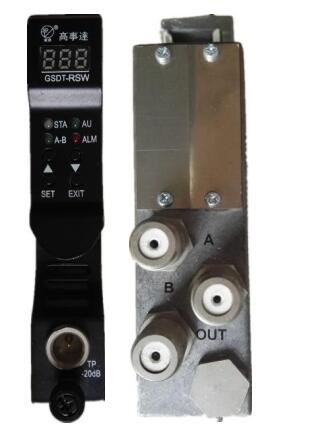

GSDT-RSW-21 FORWARD RF SWITCH



Description

The GSDT-RSW-21 is a 3u rack mount, A/B Style RF switch. The Model automatically switches from the primary RF source to the secondary RF source whenever the primary source is interrupted. The user can set the threshold criteria to decide when a switch occurs. After a switch has occurred, when the primary source again exceeds the user-defined threshold, normal (un-switched) operation is resumed. An alarm informs the user when either the primary or secondary input levels fall below the preset limit.

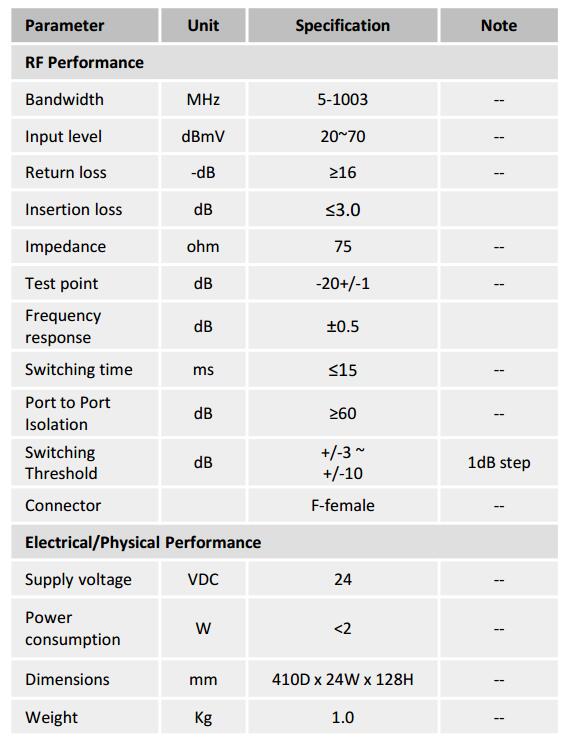

Specifications



Features

■ Hot swap plug-in module

■ Frequency range of 5 to 1003 MHz

■ RF level detection for automatic switching

■ Front panel switch for A/B or automatic operation

■ RF level monitoring for input

■ Front panel LEDs indicate the status

■ Local and remote software control

■ RF input calibration setting

Absolute Maximum Ratings


Stresses in excess of the absolute maximum ratings can cause permanent damage to the device. These are absolute stress ratings only. Functional operation of the device is not implied at these conditions. Exposure to absolute maximum ratings for extended periods can adversely affect device reliability.
